Figure 4 MED-WHT 10 3D Printing Material

Biocompatible*, sterilizable and high temperature resistant

Figure 4® MED-WHT 10 is a rigid, white material for a range of medical and industrial applications, including when biocompatibility, sterilization and/or thermal resistance is required. Capable of meeting ISO 10993-5 and -10 standards for biocompatibility (cytotoxicity, sensitization and irritation), this material can also be sterilized by autoclave. It delivers highly accurate parts with excellent feature resolution and high definition.

  • Applications

    • General medical applications requiring biocompatibility, sterilization and/or thermal resistance
    • Surgical drill guides, splints

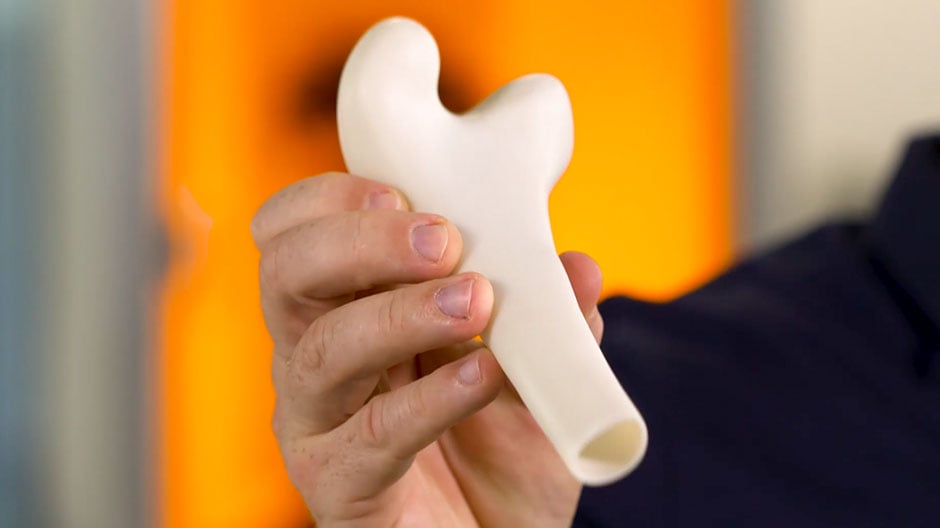

    • Bone models
    • Parts requiring rigidity with high temperature and/or water resistance
    • Parts with high definition details

  • Benefits

    • Capable of meeting ISO 10993-5 and -10 standards for biocompatibility (cytotoxicity, sensitization and irritation)
    • Smooth surfaces for beautiful display models and prototypes
    • High temperature testing
    • True-to-CAD accuracy and crisp feature detail

  • Features

    • Biocompatible*
    • Sterilizable by autoclave
    • Thermal resistance over 100 °C
    • Excellent humidity/moisture resistance
    • Rigid and white

  • Key Material Properties

    The full suite of mechanical properties are given per ASTM and ISO standards where applicable. All parts are conditioned per ASTM recommended standards for a minimum of 40 hours at 23 °C, 50% RH. Material properties include physical and mechanical properties, as well as thermal.

  • Isotropic properties

    Figure 4 technology prints parts that are isotropic in mechanical properties meaning the parts printed along either the XYZ axis will give similar results. Parts do not need to be oriented to get the highest mechanical properties, further improving the degree of freedom for part orientation for mechanical properties.

Long term environmental stability

Figure 4 MED-WHT 10 is engineered to give long term environmental UV and humidity stability. This means the material is tested for the ability to retain a high percent of the initial mechanical properties over a given period of time. This provides real design conditions to consider for the application or part.

Below is a sampling of the dataset. The full datasheet includes Indoor and Outdoor Stability data for Tensile Strength, Elongation at Break, Tensile Modulus and Impact Strength. Actual data value is on Y-axis, and data points are % of initial value.

  • Indoor Stability

    Tested per ASTM D4329 standard method.

    Figure 4 MED-WHT 10 indoor elongation at break chart

Chemical and automotive fluid compatibility

The compatibility of a material with hydrocarbons and cleaning chemicals is critical to part application. Figure 4 MED-WHT 10 parts were tested for sealed and surface contact compatibility per ASTM D543 test conditions and per USCAR2 test conditions.  Tensile Strength (MPa) is shown below. The full datasheet includes additional data tables for Tensile Modulus, Elongation at Break and Notched Impact Strength.

  • Automotive Fluid Compatibility

    Figure 4 MED-WHT 10 automotive fluid tensile strength chart

  • Chemical Compatibility

    Figure 4 MED-WHT 10 chemical compatibility tensile strength chart

* Biocompatibility is based on testing by 3D Systems on a single geometry and sample set per ISO 10993-5 and -10. Users should confirm fitness for use and biocompatibility for their applications.

* Note: Not all products and materials are available in all countries – please consult your local sales representative for availability.

What's New with Figure 4?

Figure 4 Playlist 1

You might also be interested in:

Technical Specifications

  • Key Mechanical Properties

    • Tensile strength, Ultimate: 60 MPa
    • Elongation at break: 3%
    • Flexural modulus: 3290 MPa
    • Impact strength (notched Izod): 17 J/m
    • Heat Deflection Temperature @ 0.45 MPa: 102 °C
    • Water absorption (24 hour): 0.25%

    Download the material technical specifications:

    Figure 4 MED-WHT 10 tech specs
    Figure 4 MED-WHT 10 tech specs (A4)
  • A rigid white material for applications requiring biocompatibility and/or thermal resistance. It provides beautiful parts that can be sterilized and tested at high temperature, over 100 °C.

    Threaded valve assembly in biocompatible*, sterilizable and high temperature resistant Figure 4 MED-WHT 10 material.
